ALPypeOpt

ALPypeOpt or AnyLogic Python Pipe for Optimization is an open source library that will allow you to create and run optimization experiments using simulations build in the AnyLogic software. AnyLogic is a powerful software that is used to develop high-fidelity system simulations that can represent reality in as much detail as the developer desires.

Important

Black box optimization is a mathematical field that is constantly evolving and improving. The aim of ALPypeOpt is to create a framework that is agnostic to the solver and facilitates the integration with as many state-of-the-art optimization packages as possible written in python.

Features

With ALPypeOpt you will be able to:

  • Connect your AnyLogic model to a black box optimization package of your choice (e.g. scikit-optimize skopt).

  • (IN PROGRESS) Scale your optimization loop by launching many AnyLogic models simultaneously (requires an exported model).

  • Debug your AnyLogic models during optimization loop (this special feature improves the user experience during model debugging remarkably).

  • Leverage on the AnyLogic rich visualization as the optimization runs (which ties to the previous bullet point).

Environments

ALPypeOpt includes 2 environments that make the connection between AnyLogic and your python scrip possible:

  • ALPypeOptConnector. The AnyLogic connector library to be dropped into your simulation model.

  • alpypeopt. The library that you will use after configuring your optimization solver in your python script to connect to the AnyLogic model.

Installation

  • You must add ALPypeOptConnector in your AnyLogic Palette. Download the jar file here and follow the instructions.

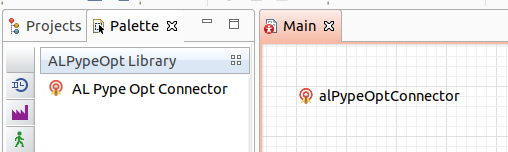

    ALPypeOpt Library

    Warning

    The ALPypeOptConnector requires additional configuration steps! It is not enougth to drag and drop an instance. Please read the documentation.

  • To install the base alpypeopt library in python, use:

    pip install alpypeopt

Requirements

  • The ALPypeOpt requires you to have the AnyLogic software (or a valid exported model). AnyLogic is a licensed software for building simulations that includes an ample variety of libraries for modelling many industry challenges. At the moment, AnyLogic provides a free license under the name PLE (Personal Learning Edition). There are other options available. For more information, you can visit the AnyLogic website.

Note

This is not a package that is currently backed by the AnyLogic support team.

  • Besides the python package alpypeopt, you will need to install your black box optimization package of choice (e.g. scikit-optimize skopt)

General architecture

The ALPypeOpt library consists of 2 artifacts (as mentioned earlier):

  • The ALPypeOpt Connector or SIMULATION. If you are familiar with the AnyLogic terms, this object has been basically built from a base Agent. It is in charge of creating a connection from the java side.

  • The python alpypeopt package or OPTIMIZATION. This library will create the connection from the python side. In the same script, you will define and configure your optimization solver.

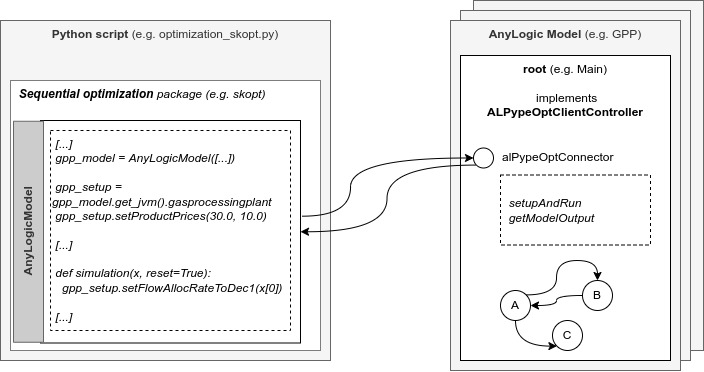

Here there’s an overall diagram to how ALPypeOpt connection is built:

ALPypeOpt diagram
